Plaats van herkomst:
China
Merknaam:
ANGES
Modelnummer:
ACK-20(D)

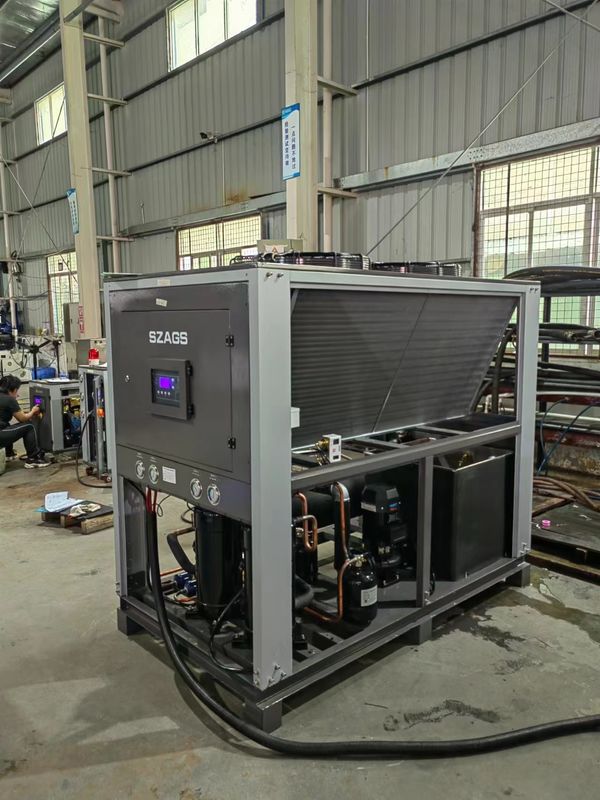

20 ton Industrial Chiller Units For Industrial Process Cooling Machince for bottle blowing machines
Providing efficient and stable cooling for bottle blowing machines (especially PET bottle blow molding machines) is the key to ensuring bottle wall uniformity, transparency and production efficiency
Specification
|
Item Model |
ACK-20(D) | ACK-25(D) | |
| Nominal cooling capacity | Ton | 17.1 | 20.8 |
| kw | 60.2 | 73.2 | |
| Input power | kw | 19.96 | 22.36 |
| Power supply | 3PH 380V 50HZ | ||
| Refrigerant | Type | R410A | |
| Type of control | Expansion valve | ||
| Compressor | Type | Hermetic scroll | |
| Power(kw) | 16.2 | 18.6 | |
| Condenser | Type | Finned copper tube + low noise outer rotor fan | |
| Power(kw) | 1.56 | 1.56 | |
| Cooling air flow(m3/h) | 20000 | 25000 | |
| Evaporator | Type | Shell and tube | |
| Chilled fluid flow(m3/h) | 10.38 | 12.62 | |
| Tank volume(L) | 170 | 170 | |
| Inlet/outlet pipe caliber(inch) | 2 | 2 | |
| Water pump | Power(kw) | 2.2 | 2.2 |
| Flow(m3/h) | 25 | 25 | |
| Lift(m) | 19 | 19 | |
| safety protection | compressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection,fusible protection. | ||
| Weight | kg | 950 | 1100 |
| Dimension | mm | 2000*1130*1820 | 2200*1130*2000 |
Daily maintenance and prevention recommendations
FAQ
1.How does a chiller system work?
Chiller has two circulation,one is process water circulation,the other is refrigerant gas circulation.Heat picked up from the process.Heat transfers to refrigerant circulation.Heat is remove to air or water.
2.How to calculate cooling capacity for chillers?
Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-t2)/0.86
Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)
3.How can we do for chiller maintenance ?
Step 1: Keep Tubes Clean
Step 2: Ensure a Leak-free Unit
Step 3: Sustain Proper Water Treatment(prevent scale, corrosion)
Step 4: Analyze Oil and Refrigerant
