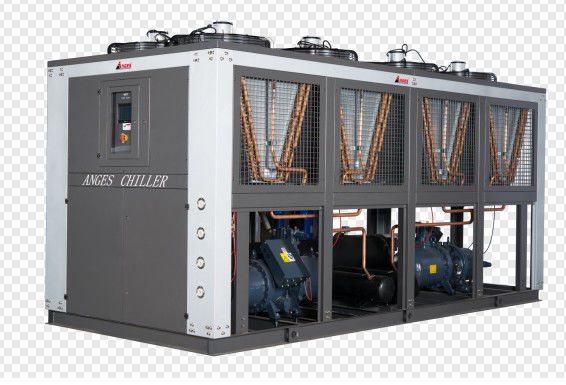

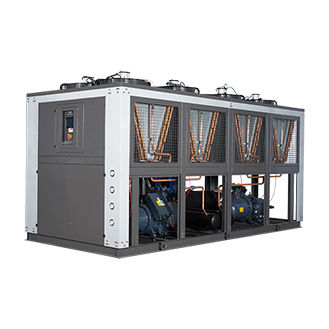

85HP Air Cooled Screw Compressor Chiller Industrial chemical chiller 85Ton Air cooling machine for Injection molding machine.

85HP Air Cooled Screw Compressor Chiller Industrial chemical chiller 85Ton Air cooling machine for Injection molding machine.

Plaats van herkomst:

China

Merknaam:

ANGES

Modelnummer:

85hp

Contacteer ons
Verzoek om een Citaat
Productdetails
conditie:
Gloednieuw
garantie:
1 jaar
Spanning:
3PH~220V/380/415V~50HZ/60HZ
koelcapaciteit:
85 ton
Type compressor:
Semi-hermetische schroef
Verdamper:
Shell en buis
Condensator:
Aluminium gevinde koperen buis + okselventilator
Koelmiddel:
R134a/R407C/R22
Betaling & het Verschepen Termijnen
Min. bestelaantal
1
Verpakking Details
Multiplex kist
Levertijd
30 dagen
Betalingscondities
T/T, L/C
Productomschrijving

85HP Air Cooled Screw Compressor Chiller Industrial  chemical chiller 85Ton Air cooling machine for Injection molding machine.



The use of chillers for cooling in injection molding production is crucial, as it directly affects product quality (dimensional stability, appearance, mechanical properties), production efficiency (shortening molding cycle) and equipment life.




Model

Parameter

AGS-085ASH AGS-080ADH
Nominal cooling capacity BTU/h 948194.8 850270.4
  kw 277.9 249.2
Input power kw 81 80.6
Max. Running current A 185.3 184.2
Power supply 3PH~380V/50HZ
Refrigerant Type R22
  Type of control Expansion valve
Compressor Type Semi-hermetic screw
  Power(kw) 75.2 37.4×2
  Start-up mode Y-△ Y-△
  Capacity control 0-25-50-75-100 0-25-50-75-100
Evaporator Type Shell and tube
  Chilled fluid flow (m3/h) 47.8 42.8
  Inlet and outlet pipe diameter (inch) 4 4
Condenser Type Air cooled type finned copper tube
  Cooling air flow (m3/h) 91000 105000
  Power(kw) 4.5 6
Safety protection compressor over temperature, unit overload, high and low pressure, flow switch, phase sequence, phase-missing, anti-freezing
Net weight kg 2420 3340
Dimension mm 3150*2140*2200 4400*1600*2060



What should be paid attention to when installing a chiller for cooling injection molding machines?

  1. Ventilation and heat dissipation: (Air-cooled chiller) Install in a well-ventilated and clean environment. Ensure that there is enough space between the air inlet and outlet (usually a certain distance is required in front, back, left and right according to the manufacturer's requirements) to avoid hot air backflow. High temperature environment will significantly reduce the cooling efficiency and reliability. (Water-cooled) Ensure that the cooling tower dissipates heat well.
  2. Pipeline design and insulation:
  3. Appropriate pipe diameter: Ensure flow and reduce pressure drop.
  4. Reasonable layout: Keep it as short and straight as possible and reduce elbows.
  5. High-quality insulation: Thorough and high-quality insulation of all chilled water pipes (especially those exposed to the environment) to prevent cold loss and condensation on the outer wall of the pipe is essential for energy saving and preventing moisture in the workshop.
  6. Horizontal placement and shock absorption: The chiller should be installed horizontally on a solid and flat ground, and shock-absorbing pads should be added if necessary. Avoid tilting operation to affect the life of the compressor and oil return.
  7. Power supply and grounding: Provide stable power supply (voltage, frequency, phase) that meets the requirements and ensure reliable grounding.





The benefits of using air-cooled chillers:

  1. No cooling towers.
  2. Better environmental stability-no water wastage.
  3. Low maintenance costs.
  4. Easier to operate and control-tower freezing and tower bypass absent.
  5. Chemical costs avoided.
  6. Water costs avoided, especially in cities.
